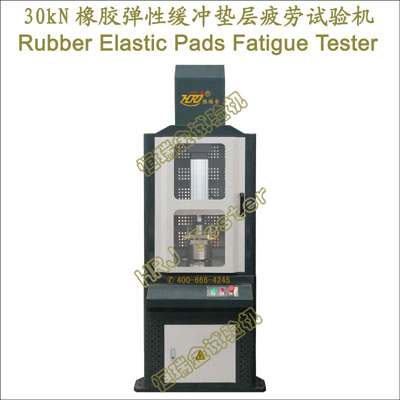

30kN/100kN橡胶弹性缓冲垫层疲劳试验机
Rubber Elastic Pads Fatigue Tester
功能参数:
→以恒定频率,向CRTS Ⅲ型弹性垫层施加垂向循环荷载,经过300万次荷载循环后,测定CRTS Ⅲ型弹性垫层永久变形。
→CRTS Ⅲ型弹性垫层300万次循环试验后,将弹性垫层取出。在23±2.0℃环境中静置24h,进行静刚度试验测试,测得弹性垫层疲劳后静刚度。计算疲劳前后弹性垫层静刚度变化率。
→CRTS Ⅲ弹性垫层疲劳试验荷载±30kN/100kN。
→CRTS Ⅲ弹性垫层静刚度试验荷载30kN/100kN。
→CRTS Ⅲ弹性垫层疲劳试验周期荷载1~24kN。
→CRTS Ⅲ弹性垫层疲劳试验加载频率4±1Hz。
→CRTS Ⅲ弹性垫层疲劳试验荷载循环300万次。
→疲劳试验空间≥200mm,位移变形0.01mm,疲劳试验荷载-位移曲线。
→HRJ高刚性支撑垫板、盖板,高稳定性、无振动冲击、流线型载荷机架,人体工程学设计。
→HRJ-Test橡胶弹性材料伺服疲劳试验软件/可定制国际版。
引用标准、文献文件:
TJ/GW114-2013《高速铁路CRTS Ⅲ型板式无砟轨道三元乙丙橡胶弹性缓冲垫层暂行技术条件》;TB/T3276;TB/T3395.1-2015高速铁路扣件通用技术条件;TB/T3395.2-2015;TB/T3395.3-2015;TB/T3396.1;TB/T3396.2;TB/T3395.4-2015;TB/T3395.5-2015:TB/T3396.4;TB/T3396.7;TB/T3514-2018;TB/T3515.4-2018;UIC 864-5;JIS E 1117;TKTJ9904-1;TJ/GW120-2013;TJ/GW119-2013;TB/T2626-2018;TB/T3307.9-2014;TB/T1495.2;TB/T3065.2;hrjtest;TB 1388;TB 1389;TB/T1781;GB/T21527;HG/T3328;TB/T2841-2019;TB/T456.1-2019;TB/T456.2-2019;TB/T2056.1-2019;TB/T2056.3-2019;TB/T3550.1-2019;TB/T3550.2-2019;TB/T456.3-2018;TB/T3545-2019;JIS E4710;JIS E4206;JIS K6385;hrjtest;CNS 10067;CNS 10068;KS R9222-2014;KS M6726-2016;KS M6745;ONORM NS EN 13913Ed.1;ONORM UNI NS EN 13597;
